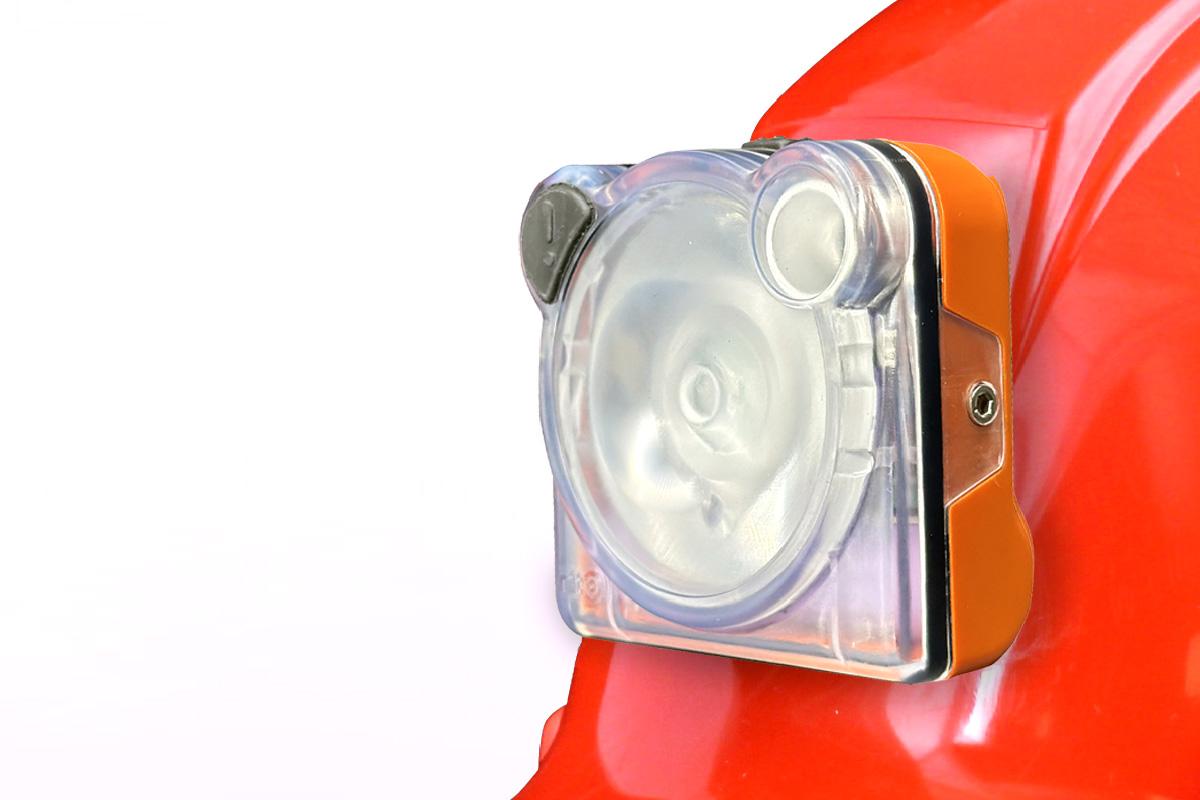

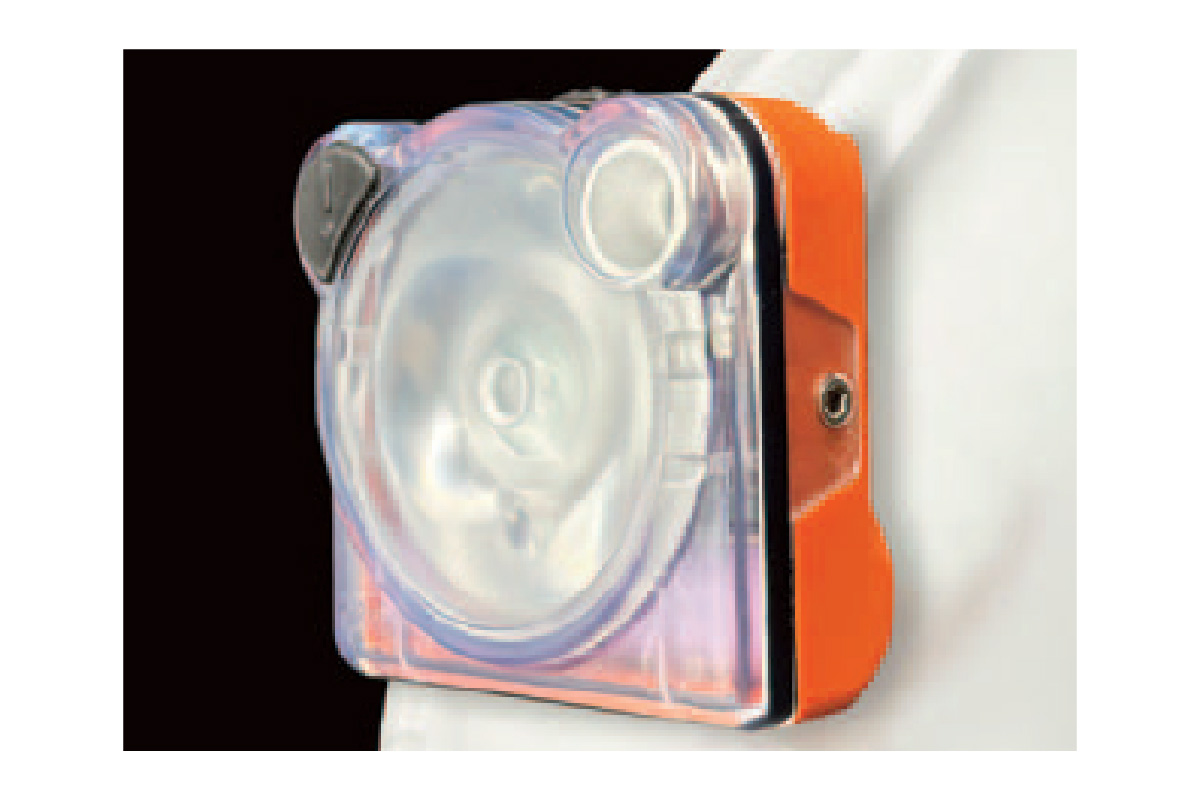

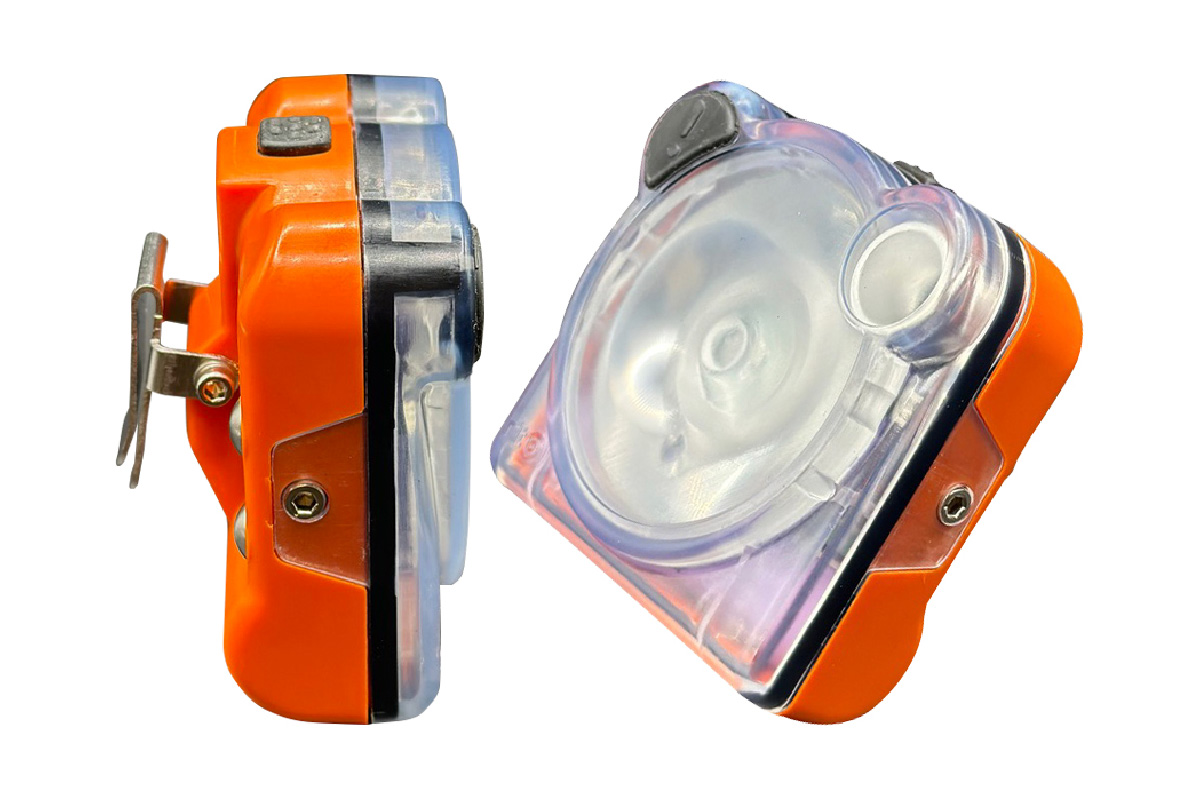

Designed & Manufactured in Canada eh!Aries
18,000 Lux Output / Smart / Dual-Beam Technology / Cordless
Highlights
- Dual-Beam technology
- Light output: 18,000 Lux
- Run time: 13 hrs minimum
- Tracking-tag enabled
- Proximity-tag enabled
- Programmable white, amber and blue LEDs
- Bidirectional communication capable – programmable push button on front of the lamp
- IP67

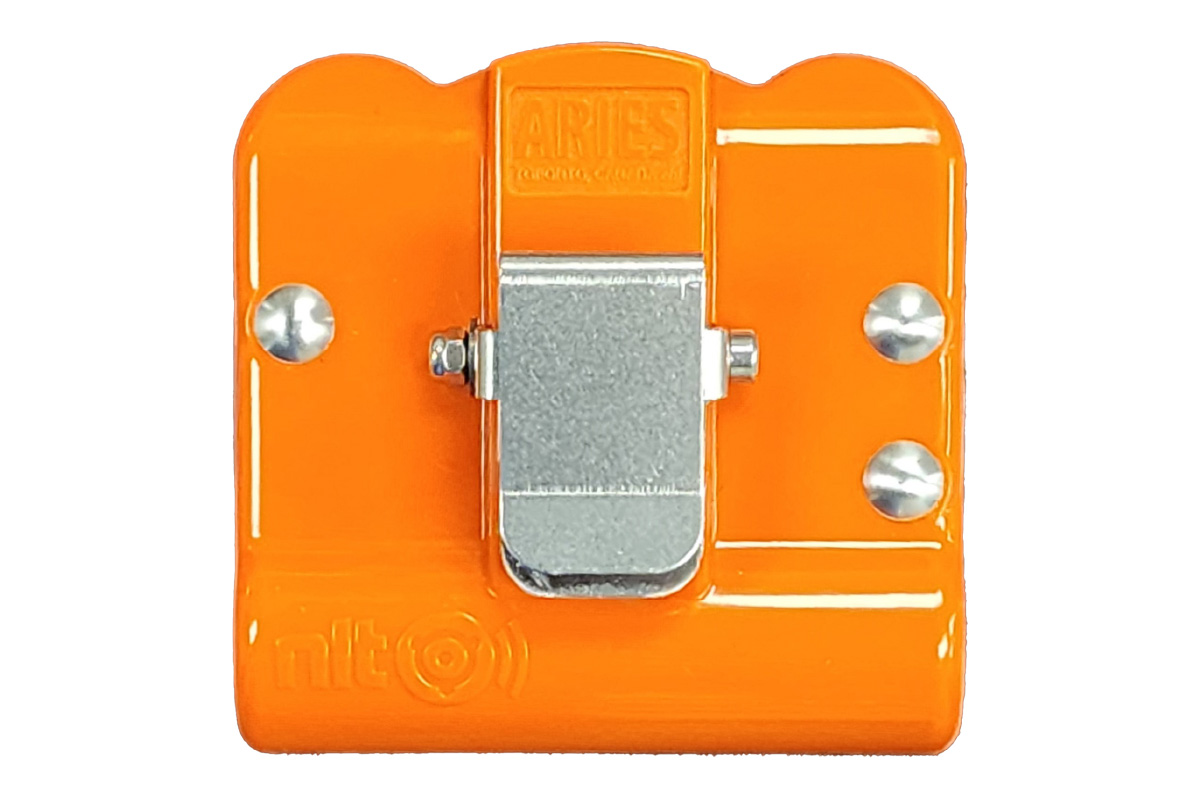

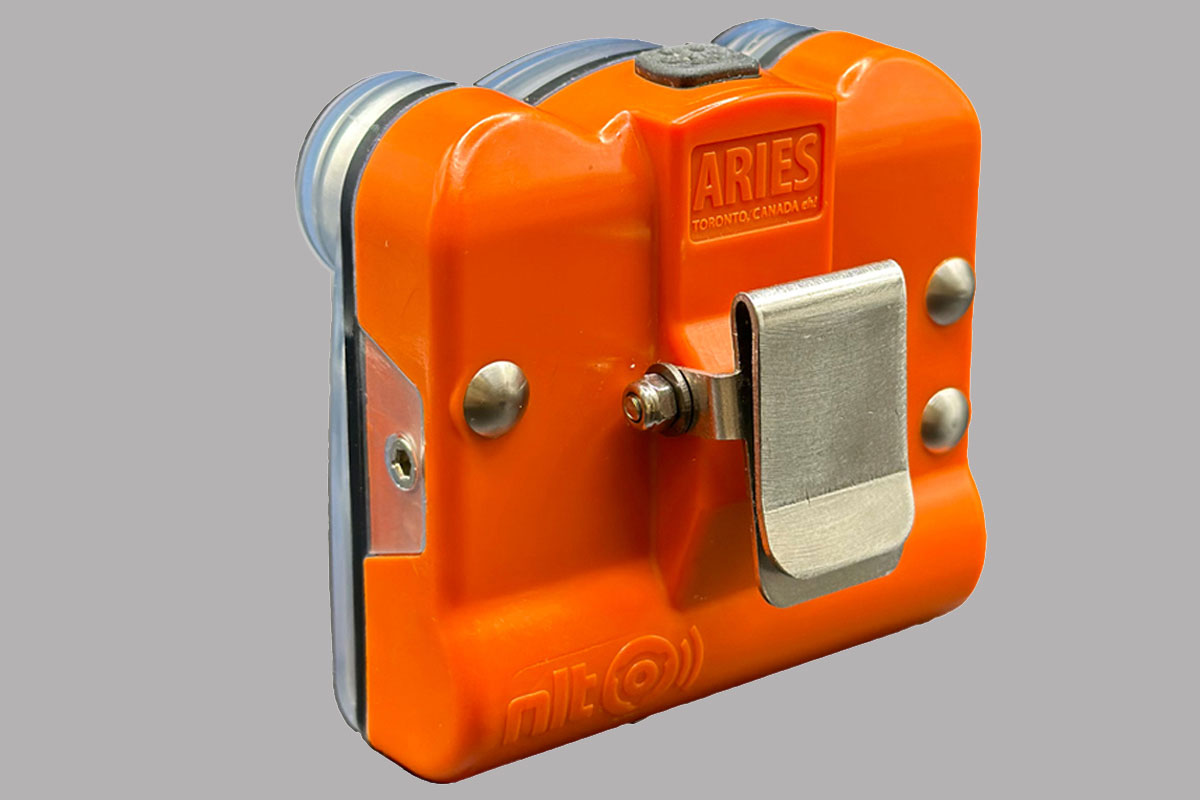

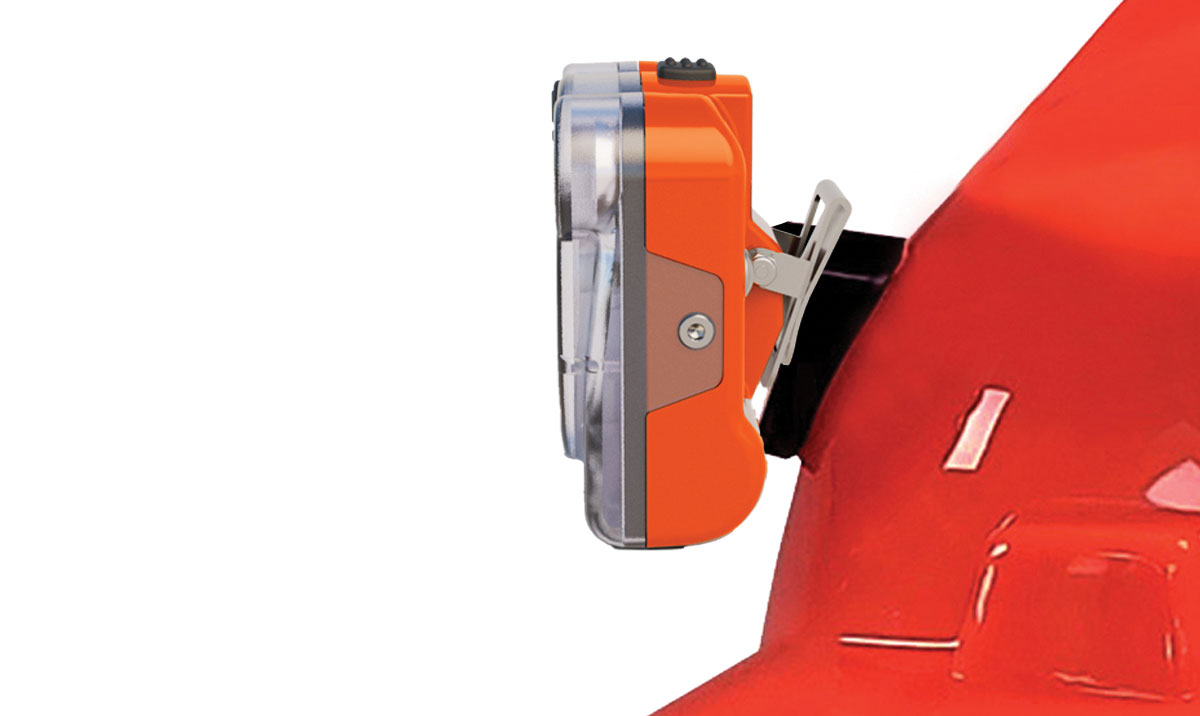

- Flexible hardhat mounting options

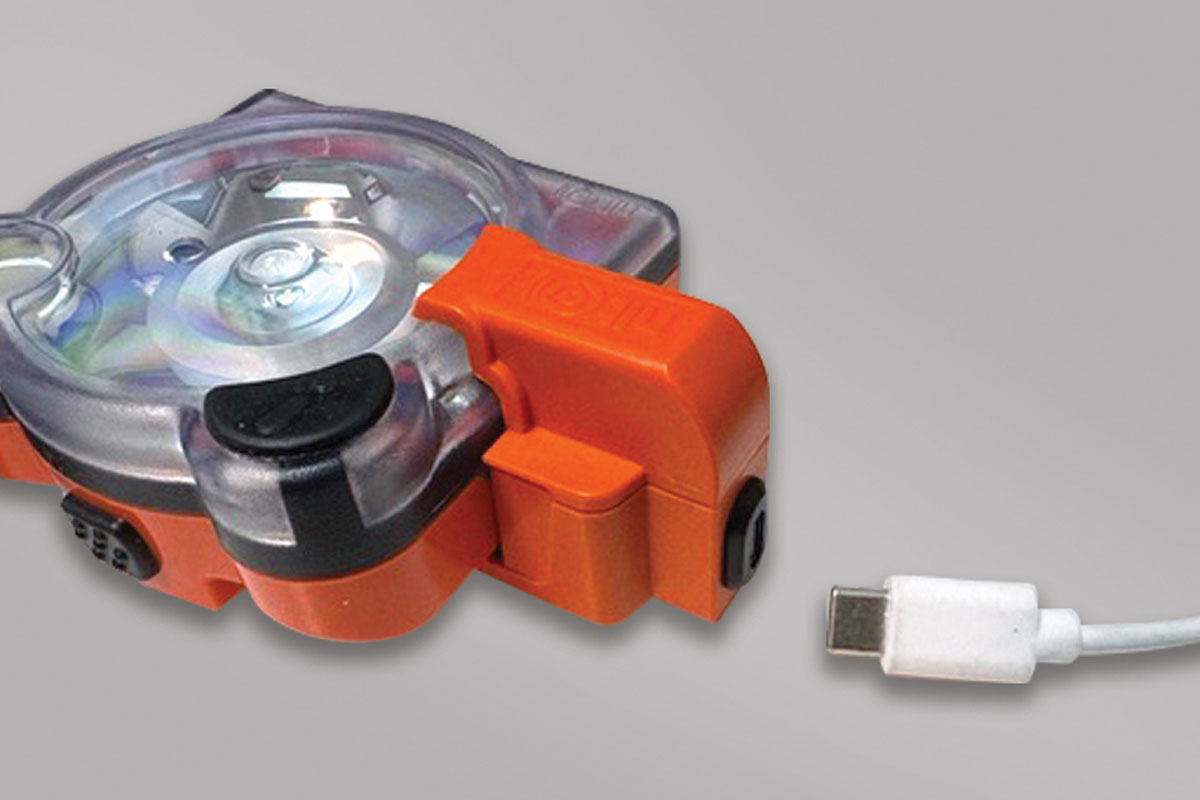

- Serviceable battery and components
- 1-year warranty

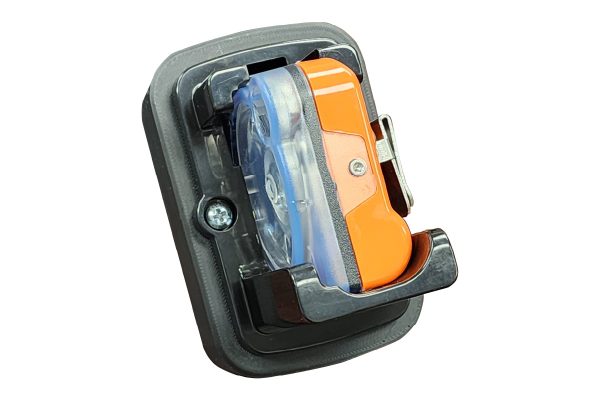

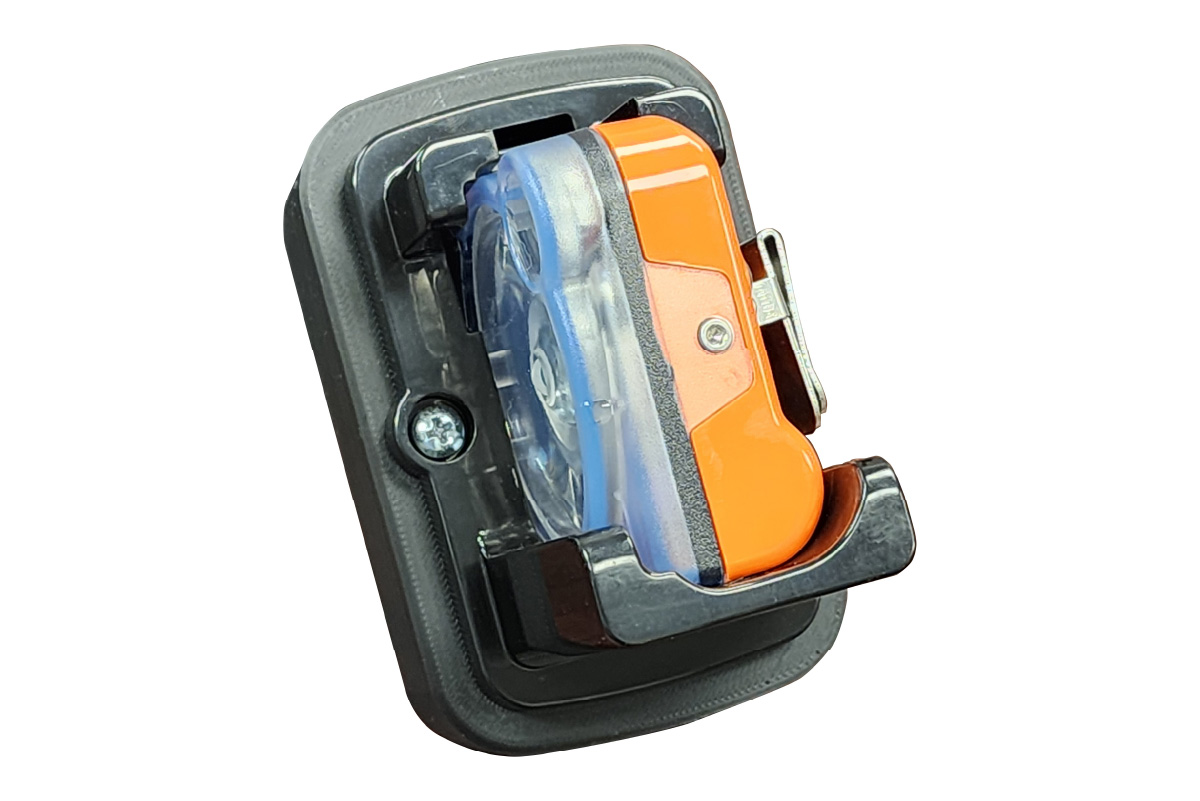

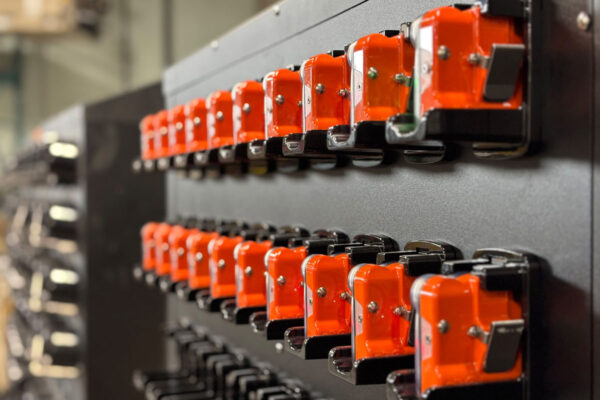

- Multiple charger configuration options (Single, 4, 10, 40 and 80-unit rack)
- Lockable charger
Dual-Beam Features
The Aries features three beam pattern options plus a Low-Light Setting:
- Focused Spot – NLT’s traditional beam pattern
- Wide-Angle Flood Light – a flat, even light; ideal for close-up work
- Dual-Beam – combines both beam patterns to provide a center spot with great peripheral lighting
- Low-Light/Emergency Setting – reduces light output when needed
Smart Features
Wireless tracking-tag enabled
Tags are primarily used for location tracking of personnel and access control. A key benefit is pinpointing the location of miners during an emergency.
Proximity-tag enabled
Tags developed in partnership with proximity detection solution suppliers use various cap lamp functions to alert miners of danger zones around equipment.
Integrated

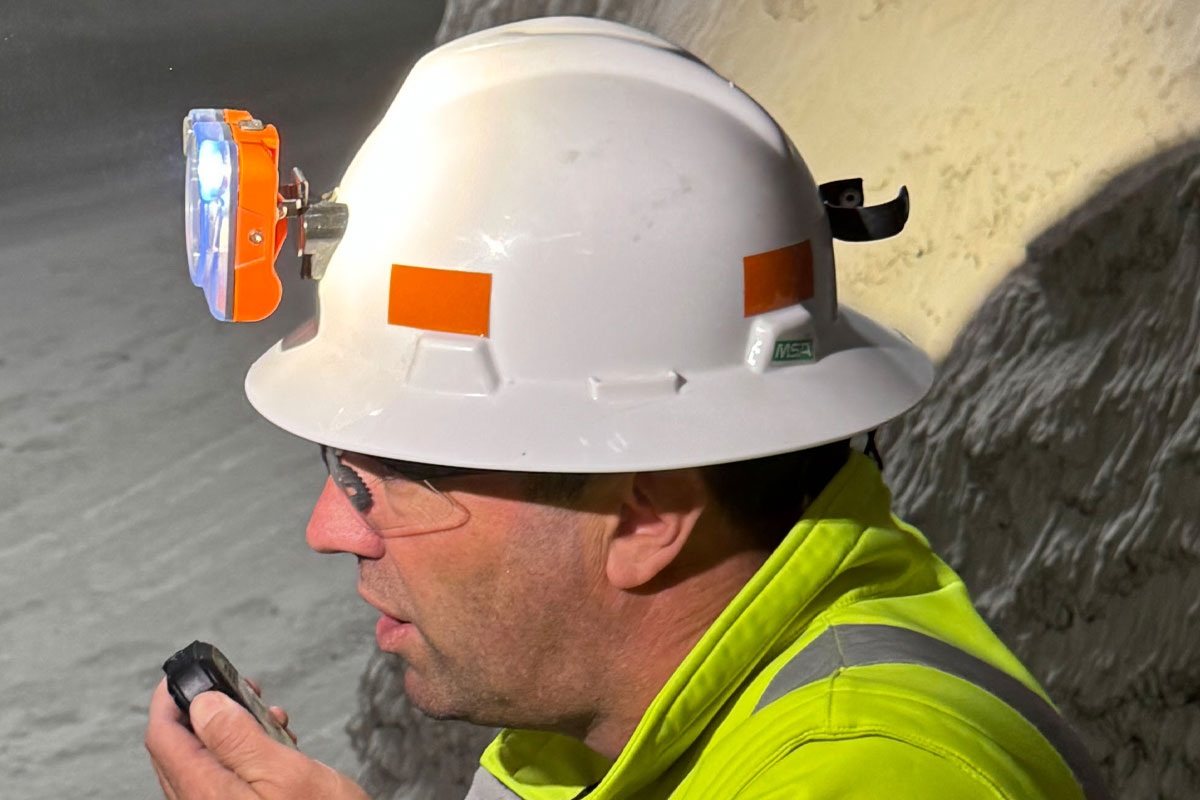

A tag integrated into the cap lamp means it cannot get left behind. Having the tag always on the miner is a key safety consideration. The tag(s) is also powered by the lamp’s rechargeable battery, eliminating the need to replace costly single-use batteries.
Programmable colored status lights
Two colored LED lights, amber and blue, can be used individually or in tandem with the main white light to communicate a variety of customized signals, including proximity, warning, danger, and operational alerts.
Bidirectional communication
The lamp has a programmable push button on the front to support bidirectional communication. The push button can be used for a variety of functions, including, but not limited to, emergency assistance (man-down) requests, acknowledging a signal/warning, or triggering a warning/alarm.
More About the Aries
Aries is quite simply the smallest, brightest and lightest Smart Cap Lamp available. Able to accommodate all of the tracking or proximity tags that currently fit into NLT’s Genesis cap lamp, Aries now supports OTA (over-the-air), allowing for seamless remote firmware updates and upgrades.
With advanced bidirectional communication, the Aries includes a second push button to initiate or acknowledge a message. Its configurable amber and blue LEDs, in conjunction with the white light, enable customizable light flashing sequences that can provide situational awareness.
NLT has designed the Aries to accommodate multiple tag options, making it compatible with most of the world’s major tracking and proximity solution providers.
Specifications
|
Battery Charge Time: |
< 10 hours |
|
Run Time: |
Main LED > 13 hours Secondary LED > 7 days |
|
Weight: |
169g (6oz) |
|
Light Output: |
18,000 Lux |
|
Charger Configuration: |
Single, 4, 10, 40 and 80-unit rack |
|
Charger Power Source: |
120V or 240V models |
|
Charging Temperature: |
5°C to 35°C (optimum 15°C to 20°C) |
|
Water and Dust Protection: |
IP67 |
|
Approvals: |
Intrinsically Safe Pending |
Resources
Data Sheet – English
Data Sheet – French
Data Sheet – Spanish
Smart Lamps Comparison Chart – English
Smart Lamps Comparison Chart – French
Smart Lamps Comparison Chart – Spanish
Quick Start Guide – English
Quick Start Guide – French
Quick Start Guide – Spanish
Lithium-Ion Battery Handling and Storage Sheet
The battery and all components of each NLT cap lamp are serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Accessories
NLT Breakaway Lanyard
NL8606
- Adjustable and detachable lamp lanyard with an aluminum swivel hook
- Cap lamps can be worn comfortably around the neck
NLT Lanyard
NL8602
- 3.8′ (.95 cm) flat breakaway lanyard with swivel hook
- Cap lamps can be worn comfortably around the neck
Nano Glass Lens Protector
NL7902
- Made from the same material that protects your phone screen
- Its 9H hardness resists scratching
- Easily applied and removed
Warranty
SEPT 6, 2024
Northern Light Technologies (NLT) guarantees that Eclipse, Polaris and Rebel cap lamps (including Plus versions), and related charging systems, will be free of material and workmanship defects for a period of 24 months from the serialized date on the product.
Genesis, Eagle and Falcon (including plus versions) and Aries cap lamps and related charging systems and the NLT Automated Cap Lamp Output Tester will be free from defects in material and workmanship for a period of 12 months from the serialized date on the product.
For lamps with third-party electronics installed, such as tags, the warranty is based on the third-party product and excluded from this policy.
Excluded from the warranty are items or components that are prone to high wear such as: rubber components, cables, strain reliefs, covers, lenses and clips.
This warranty does not apply to NLT product performance due to the installation or integration of non-approved third-party components or solutions, such as, but not limited to tracking tags.
This warranty is conditional upon the proper use, maintenance, operation, charging, and protection according to instructions within NLT User Guides.
Northern Light Technologies’ responsibility for any loss or damages, regardless of cause, shall not exceed, under any circumstances, the original purchase price of the product to the original purchaser.
Shipping of warranty products to NLT is the responsibility of the distributor / customer. NLT will ship repaired or replaced products back at no charge.
NON-WARRANTY REPAIRS POLICY
Northern Light Technologies will repair any product that is outside the Warranty Policy under the following conditions:
- All returns must be approved by an NLT customer service representative in advance through the issuance of a Return Goods Authorization (RGA) number. Equipment returned without an RGA number will be subject to an administration surcharge of $50.00,
- Equipment returned to NLT with no fault found will be subject to a minimum troubleshooting charge of $10.00 per piece of equipment, plus shipping and handling,
Refused estimates or units that are uneconomical to repair are subject to a minimum troubleshooting charge of $10.00 per unit, - Troubleshooting charges may be applied as a discount to replacement purchases if made within 30 days,
- Shipping in both directions for non-warranty products is the responsibility of the customer,
- Repaired or replaced components are further warranted for 1 year from the repair date excluding high wear components as detailed above.
