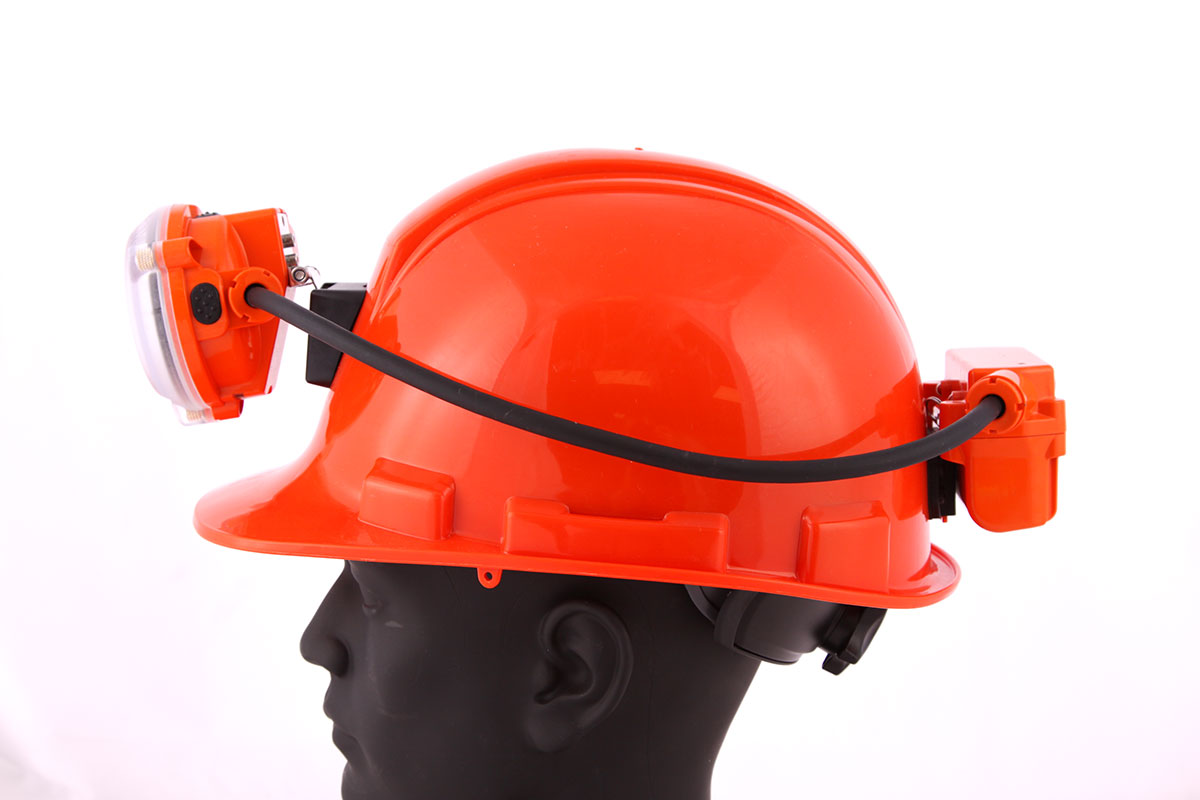

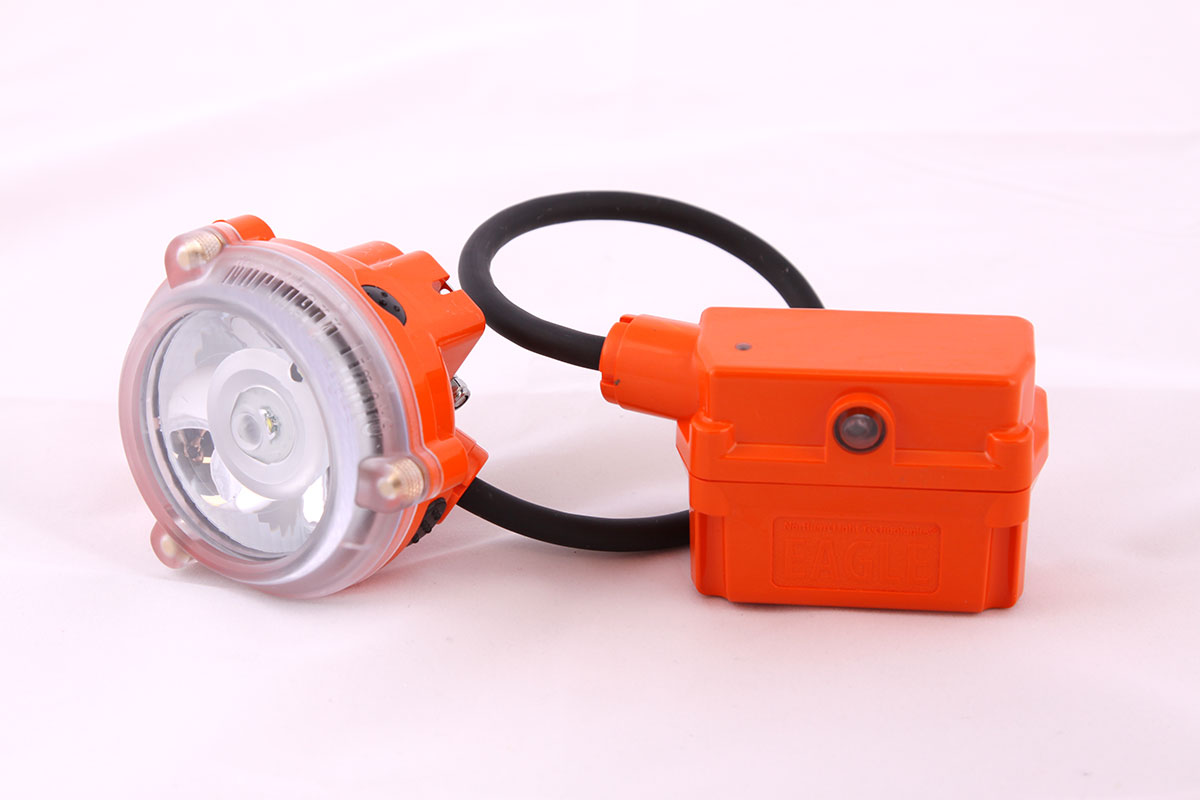

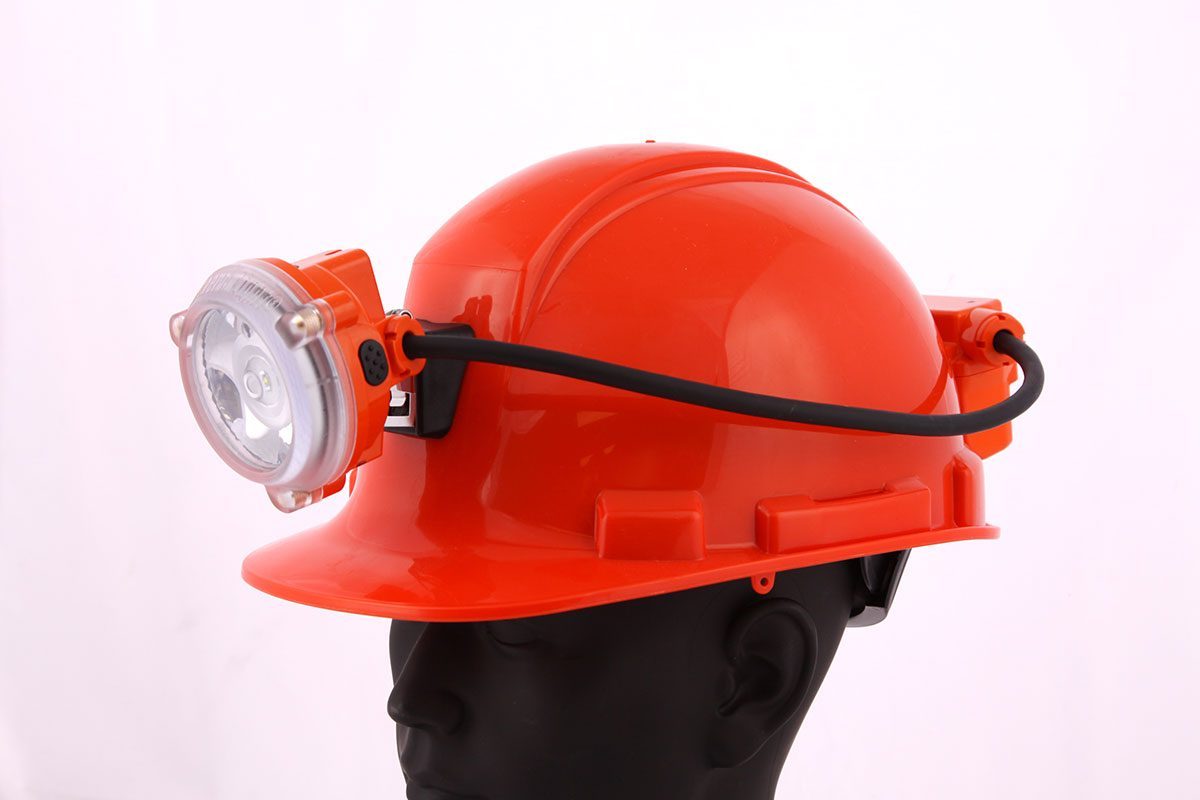

Eagle
7,000 Lux Output / Smart / Semi-Corded
Highlights
- Light output: 12,500 Lux
- Run time: Main LED: 14 hrs minimum, Low-Light/Emergency LED: 7 days minimum
- Tracking-tag enabled
- Proximity-tag enabled
- Bidirectional communication between tags and cap lamp
- Programmable primary LED, including customizable flashing sequence – Man Down / Evacuation Notification
- Programmable color status LEDs, including online/offline notification
- Lamp cord is side-mounted, highly durable, extreme-temperature resistant
- Rear-flashing LED taillight
- IP67
- Fully customizable
- Flexible hardhat mounting options – fixed and adjustable clips
- Serviceable battery and components
- 1-year warranty

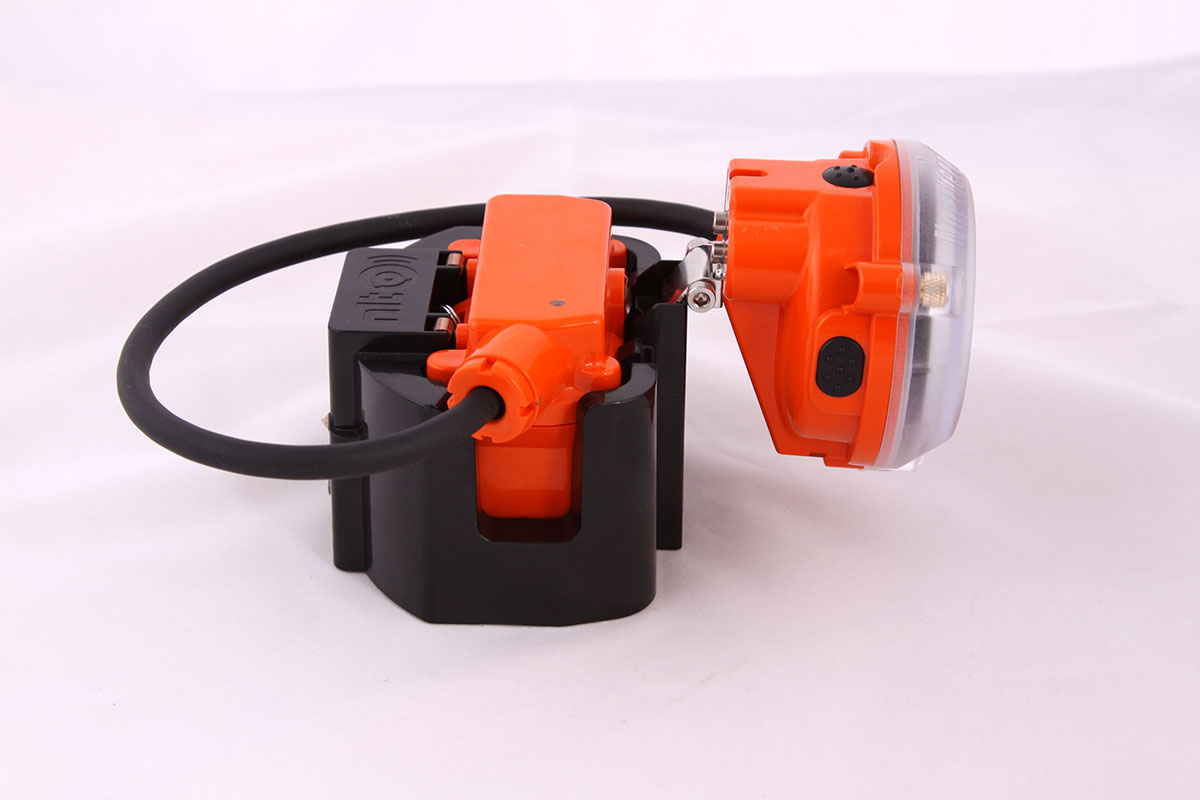

- Multiple charger configuration options (single, 4-unit, 10-unit, 24-unit and 48-unit)
- Anti-theft locking device
Smart Features
Wi-Fi, RFID, Bluetooth or LTE tracking-tag enabled
Tags are primarily used for location tracking of personnel and access control. A key benefit is pinpointing the location of miners during an emergency.
Tag is powered by the lamp
Once installed into the NLT lamp, there is never a need to change the tag battery. The Eagle lamp provides optimum power for the tag.
Integrated
By having the tag integrated into the cap lamp, the tag will not get left behind. Having the tag always on the miner is a very important safety consideration.
Proximity-tag enabled
Tags developed in partnership with proximity detection solution suppliers use various cap lamp functions to alert miners of danger zones.
Programmable, colored status lights
Two colored LED lights in the cap lamp can be pre-programmed by 3rd-party software (proximity-enabled model only) and are often used to differentiate proximity zones near equipment by color (e.g., yellow=caution; red=danger) or can be programmed to send messages in multiple standard sequences.

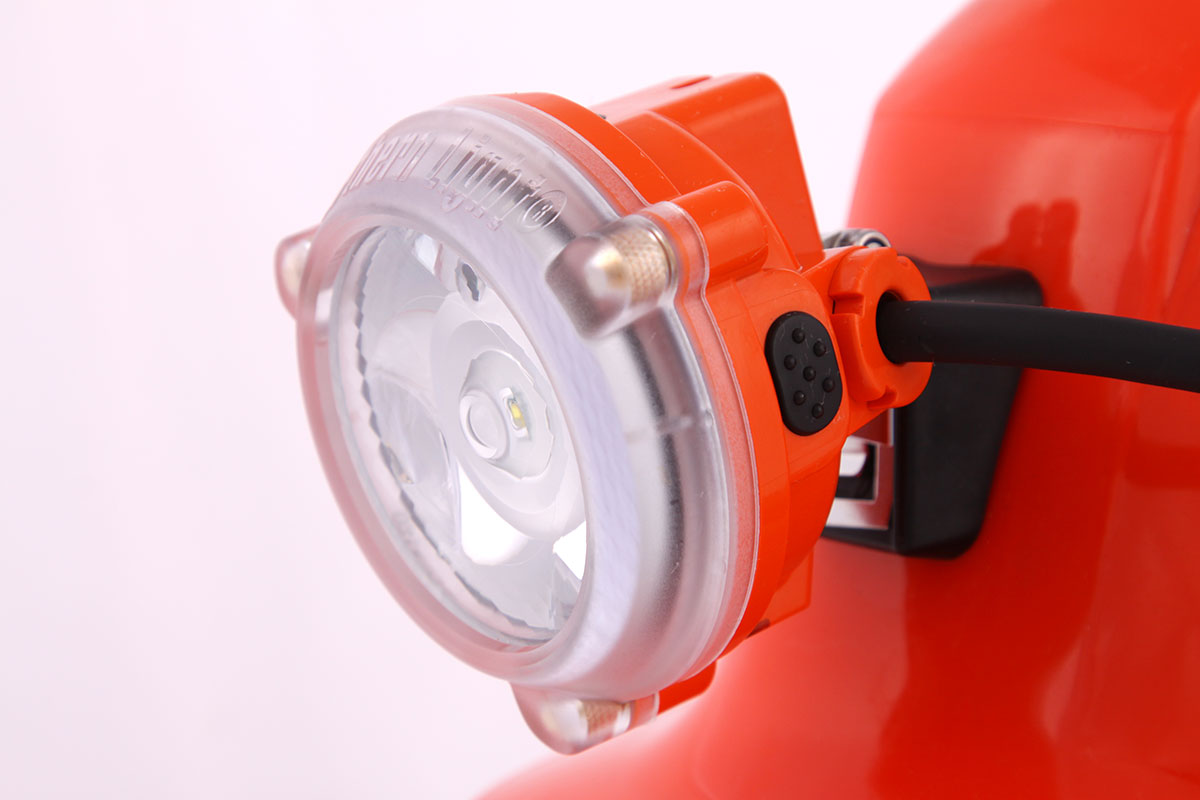

Bidirectional communication
The headpiece has 2 additional side push buttons to support bidirectional communication. The push buttons are used for a variety of functions, including, but not limited to, emergency assistance (man-down) requests, acknowledging a signal/warning or triggering a warning/alarm.
Programmable cap lamp lights
The fully programmable cap lamp status lights can be used for a variety of notifications, including safety or operational alerts, e.g., for a man-down or evacuation signal by flashing a pre-programmed sequence. It can also be used to signal shift change or report-to-surface instructions.

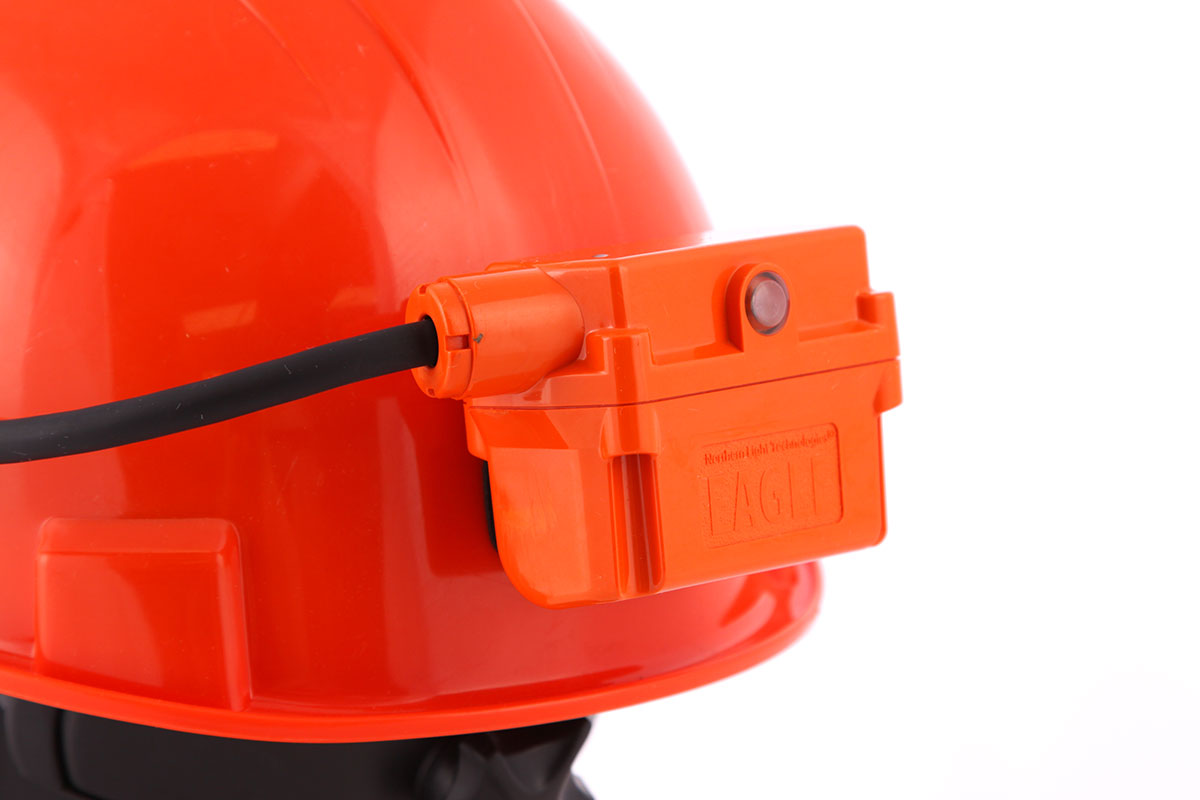

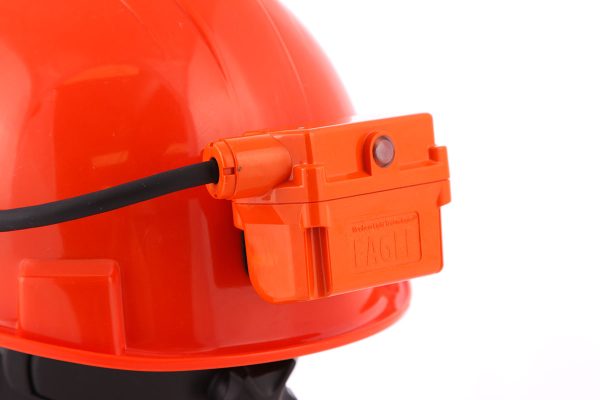

Flashing blue LED “Taillight”
To enhance user visibility, the taillight on the battery pack faces away from the hard hat to alert others making a rear approach.
Online/Offline indicator
Alerts user to operational status on applicable models.
More About the Eagle
The first cap lamp to accommodate both tracking and proximity tags, the Eagle is focused on boosting safety and productivity. The Eagle is semi-corded with the battery pack worn on the back of the hardhat for excellent weight distribution. Additionally, there is a rear-facing “taillight” that alerts others of the miner’s presence ahead.
Recognized by 3rd-party solution suppliers as the best multi-tag lamp option available, the Eagle features a large tag pocket located on its headpiece or battery pack. NLT currently has partnerships with many of the top tracking and proximity OEMs, and its cap lamps accommodate tags from most major companies. NLT has designed the Eagle to take advantage of today’s technology while providing the flexibility to accommodate emerging safety and communications technologies.
The battery and all components of the Eagle are serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Specifications
|
Battery Charge Time: |
< 10 hours |
|
Run Time: |
Main LED > 14 hours Low-Light/Emergency LED > 7 days |
|
Weight: |
330g (11.6oz) |
|
Light Output: |
12,500 Lux |
|
Charger Configuration: |
Single, 4, 10, 24, 48-unit |
|
Charger Power Source: |
120V or 240V models |
|
Charging Temperature: |
5°C to 35°C (optimum 15°C to 20°C) |
|
Water and Dust Protection: |
IP67 |
Resources
Data Sheet – English
Data Sheet – Spanish
Data Sheet – French
Smart Cap Lamps Comparison Chart – English
Smart Cap Lamps Flyer – English
Smart Cap Lamps Comparison Chart – Spanish
Smart Cap Lamps Flyer – Spanish
Smart Cap Lamps Comparison Chart – French
Smart Cap Lamps Flyer – French
The battery and all components of each NLT cap lamp are serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Accessories
Adjustable Clip
NL0337
- Newer clip designed to accommodate a wide range of hard hats
- Specifically engineered for hard hats with a wide plastic pocket where the lamp mounts, such as the Petzl ST hard hat
Adjustable Locking Clip
NL0329
- Adjustable clip with a security locking feature to prevent cap lamp from falling out of the hard hat bracket
Fixed Mounting Clip
NL8005
- Cap lamp is designed so that the angle of the light shines in the normal working areas at all times, and there is no need to pivot the lamp
Standard Adjustable Clip
NL0334
- Allows the user to adjust the angle of the light beam
- Attaches easily to most hard hats
Hardhat Battery Bracket
NL8133-A
- Secures battery bracket to the back of the hardhat with nylon screws
NL8143
- Secures battery bracket to the back of the hardhat with 3M double-sided tape
Nano Glass Lens Protector
NL7901-P10
- Made from the same material that protects your phone screen
- Its 9H hardness resists scratching
- Easily applied and removed
Warranty
SEPT 6, 2024
Northern Light Technologies (NLT) guarantees that Eclipse, Polaris and Rebel cap lamps (including Plus versions), and related charging systems, will be free of material and workmanship defects for a period of 24 months from the serialized date on the product.
Genesis, Eagle and Falcon (including plus versions) and Aries cap lamps and related charging systems and the NLT Automated Cap Lamp Output Tester will be free from defects in material and workmanship for a period of 12 months from the serialized date on the product.
For lamps with third-party electronics installed, such as tags, the warranty is based on the third-party product and excluded from this policy.
Excluded from the warranty are items or components that are prone to high wear such as: rubber components, cables, strain reliefs, covers, lenses and clips.
This warranty does not apply to NLT product performance due to the installation or integration of non-approved third-party components or solutions, such as, but not limited to tracking tags.
This warranty is conditional upon the proper use, maintenance, operation, charging, and protection according to instructions within NLT User Guides.
Northern Light Technologies’ responsibility for any loss or damages, regardless of cause, shall not exceed, under any circumstances, the original purchase price of the product to the original purchaser.
Shipping of warranty products to NLT is the responsibility of the distributor / customer. NLT will ship repaired or replaced products back at no charge.
NON-WARRANTY REPAIRS POLICY
Northern Light Technologies will repair any product that is outside the Warranty Policy under the following conditions:
- All returns must be approved by an NLT customer service representative in advance through the issuance of a Return Goods Authorization (RGA) number. Equipment returned without an RGA number will be subject to an administration surcharge of $50.00,
- Equipment returned to NLT with no fault found will be subject to a minimum troubleshooting charge of $10.00 per piece of equipment, plus shipping and handling,
Refused estimates or units that are uneconomical to repair are subject to a minimum troubleshooting charge of $10.00 per unit, - Troubleshooting charges may be applied as a discount to replacement purchases if made within 30 days,
- Shipping in both directions for non-warranty products is the responsibility of the customer,
- Repaired or replaced components are further warranted for 1 year from the repair date excluding high wear components as detailed above.
Designed & Manufactured in Canada eh!Eagle
