Designed & Manufactured in Canada eh!Eagle Plus
16,000 Lux Output / Smart / Dual-Beam Technology / Semi-Corded
Highlights
- Dual-Beam technology
- Light output: 16,000 Lux
- Run time: 13 hrs minimum
- Tracking-tag enabled
- Proximity-tag enabled
- Programmable white, amber and blue LEDs
- Programmable rear-flashing LED taillight
- Programmable audio alarm in rear battery case
- Bidirectional communication – two side push buttons on headpiece
- IP67

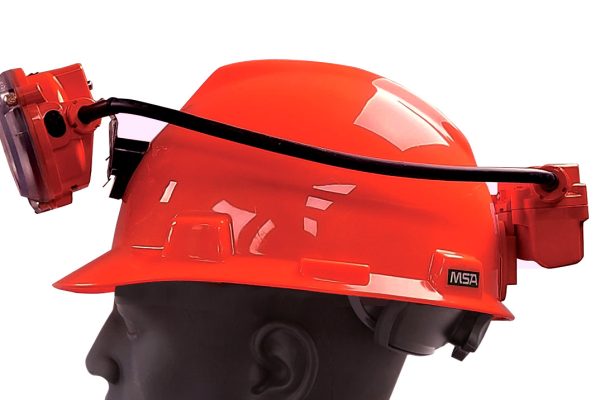

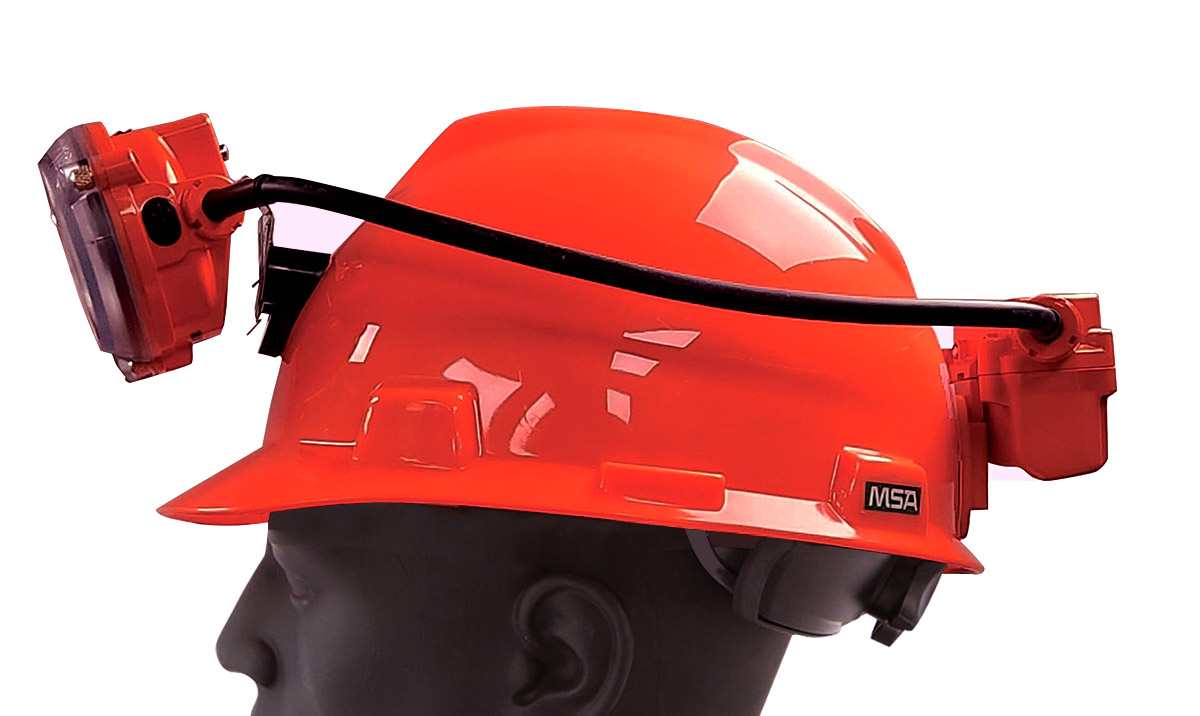

- Flexible hardhat mounting options – fixed and adjustable clips
- Serviceable battery and components
- 1-year warranty
- Lamp cord is side-mounted, highly durable, extreme-temperature resistant
- Multiple charger configuration options (single, 4-unit, 10-unit, 24 unit and 48-unit)
- Charger anti-theft locking device

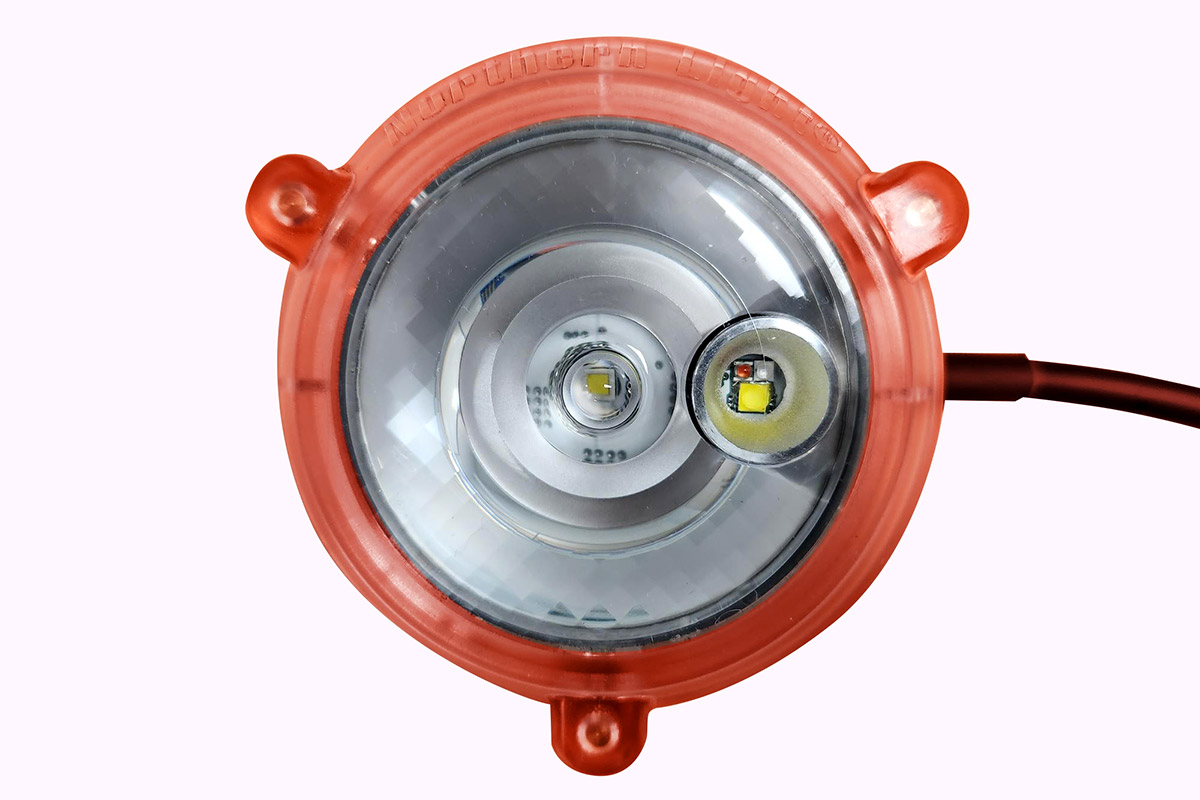

Dual-Beam Features
The Eagle Plus features three beam pattern options plus a Low-Light Setting:
- Focused Spot – NLT’s traditional beam pattern
- Wide-Angle Flood Light – a flat, even light; ideal for close-up work
- Dual-Beam – combines both beam patterns to provide a center spot with great peripheral lighting
- Low-Light/Emergency Setting – reduces light output when needed
Smart Features
Tags are primarily used for location tracking of personnel and access control. A key benefit is pinpointing the location of miners during an emergency.
Proximity-tag enabled
Tags developed in partnership with proximity detection solution suppliers use various cap lamp functions to alert miners of danger zones around equipment.
Integrated
A tag integrated into the cap lamp means it cannot get left behind. Having the tag always on the miner is a key safety consideration. The tag(s) is also powered by the lamp’s rechargeable battery, eliminating the need to replace costly single-use batteries.
Programmable colored status lights
Two colored LED lights, amber and blue, can be used individually or in tandem with the main white light to communicate a variety of customized signals, including proximity, warning, danger and operational alerts.
Bidirectional communication
The headpiece has two additional side push buttons to support bidirectional communication. The push buttons are used for a variety of functions, including, but not limited to, emergency assistance (man-down) requests, acknowledging a signal/warning or triggering a warning/alarm.

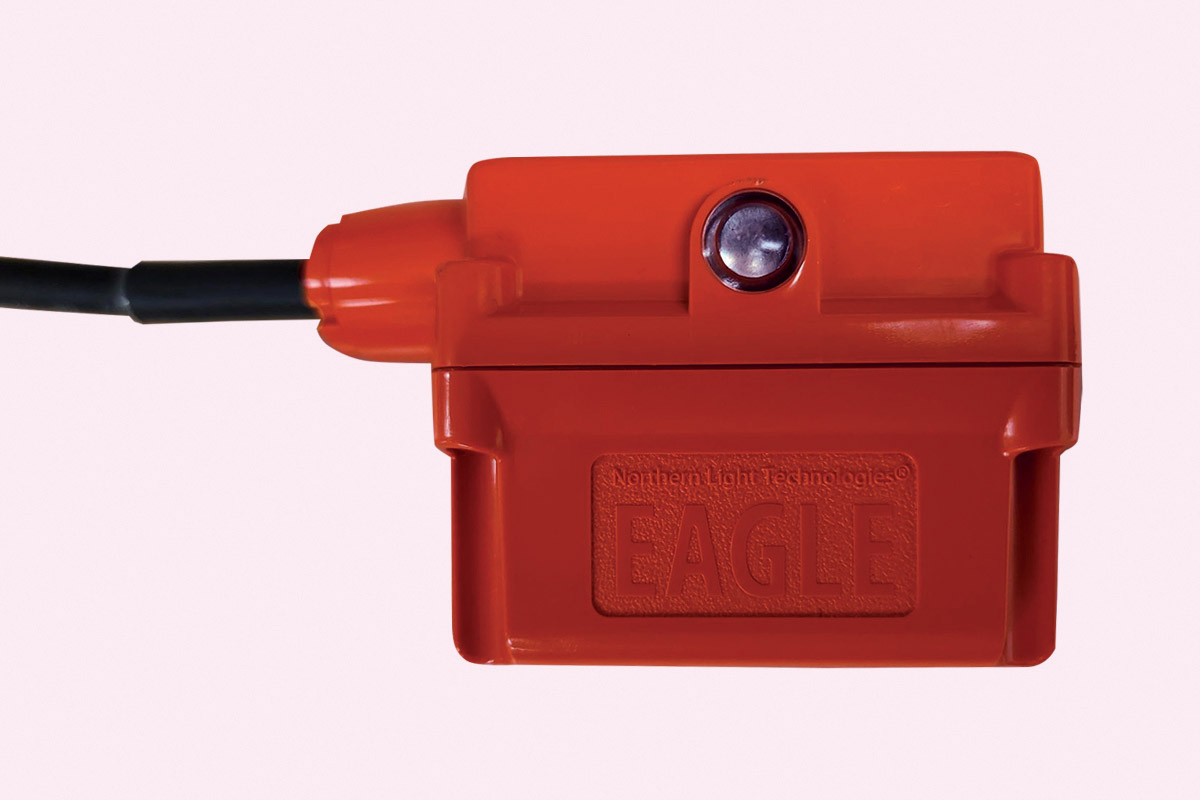

Flashing blue LED “Taillight”
To enhance user visibility, the taillight on the battery pack faces away from the hard hat to alert others making a rear approach.
Programmable audio alarm
The battery pack features a customizable audio alarm for safety or operational alerts.
More About the Eagle Plus
The most technologically advanced Smart Cap Lamp on the market today, the Eagle Plus was developed in partnership with miners and solution providers to create a highly comfortable and versatile cap lamp. The Eagle Plus, which accommodates tracking and/or proximity tags, now includes NLT’s groundbreaking Dual-Beam technology.
This rugged, semi-corded cap lamp offers numerous features and benefits. Its Dual-Beam technology enables multiple beam patterns that increase hazard visibility and dramatically reduce eye fatigue, providing the right light for every job a miner does. The super-bright Eagle Plus now has two additional colored LEDs, amber and blue, that can be used individually or in tandem with the main white light to communicate a variety of customized signals, including proximity, warning, danger and operational alerts. It has a programmable rear-facing “taillight” that alerts others to the miner’s presence ahead and a programmable audio alarm installed in the battery pack for increased safety. Additionally, the battery pack, which is worn on the back of the hardhat, provides excellent 50/50 weight distribution and has been shown to reduce neck strain and fatigue. It offers an ideal solution for miners with weak or compromised necks.
Recognized by 3rd-party solution suppliers as the best multi-tag lamp option available, the Eagle Plus features large tag pockets in both its headpiece and battery pack. NLT is proud to partner with most of the world’s top tracking and proximity solution providers.
The battery and all components of the Eagle Plus are serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Specifications
|
Battery Charge Time: |
< 10 hours |
|
Run Time: |
Main LED > 13 hours Low-Light/Emergency LED > 7 days |
|
Weight: |
330g (11.6oz) |
|
Light Output: |
16,000 Lux |
|
Charger Configuration: |
Single, 4, 10, 24, 48-unit |
|
Charger Power Source: |
120V or 240V models |
|
Charging Temperature: |
5°C to 35°C (optimum 15°C to 20°C) |
|
Water and Dust Protection: |
IP67 |
Resources
Data Sheet – English
Why Switch to Plus Flyer
The battery and all components of each NLT cap lamp are serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Accessories
Adjustable Clip
NL0337
- Newer clip designed to accommodate a wide range of hard hats
- Specifically engineered for hard hats with a wide plastic pocket where the lamp mounts, such as the Petzl ST hard hat
Adjustable Locking Clip
NL0329
- Adjustable clip with a security locking feature to prevent cap lamp from falling out of the hard hat bracket
Fixed Mounting Clip
NL8005
- Cap lamp is designed so that the angle of the light shines in the normal working areas at all times, and there is no need to pivot the lamp
Standard Adjustable Clip
NL0334
- Allows the user to adjust the angle of the light beam
- Attaches easily to most hard hats
Hardhat Battery Bracket
NL8133-A
- Secures battery bracket to the back of the hardhat with nylon screws
NL8143
- Secures battery bracket to the back of the hardhat with 3M double-sided tape
Nano Glass Lens Protector
NL7901-P10
- Made from the same material that protects your phone screen
- Its 9H hardness resists scratching
- Easily applied and removed
Warranty
SEPT 6, 2024
Northern Light Technologies (NLT) guarantees that Eclipse, Polaris and Rebel cap lamps (including Plus versions), and related charging systems, will be free of material and workmanship defects for a period of 24 months from the serialized date on the product.
Genesis, Eagle and Falcon (including plus versions) and Aries cap lamps and related charging systems and the NLT Automated Cap Lamp Output Tester will be free from defects in material and workmanship for a period of 12 months from the serialized date on the product.
For lamps with third-party electronics installed, such as tags, the warranty is based on the third-party product and excluded from this policy.
Excluded from the warranty are items or components that are prone to high wear such as: rubber components, cables, strain reliefs, covers, lenses and clips.
This warranty does not apply to NLT product performance due to the installation or integration of non-approved third-party components or solutions, such as, but not limited to tracking tags.
This warranty is conditional upon the proper use, maintenance, operation, charging, and protection according to instructions within NLT User Guides.
Northern Light Technologies’ responsibility for any loss or damages, regardless of cause, shall not exceed, under any circumstances, the original purchase price of the product to the original purchaser.
Shipping of warranty products to NLT is the responsibility of the distributor / customer. NLT will ship repaired or replaced products back at no charge.
NON-WARRANTY REPAIRS POLICY
Northern Light Technologies will repair any product that is outside the Warranty Policy under the following conditions:
- All returns must be approved by an NLT customer service representative in advance through the issuance of a Return Goods Authorization (RGA) number. Equipment returned without an RGA number will be subject to an administration surcharge of $50.00,
- Equipment returned to NLT with no fault found will be subject to a minimum troubleshooting charge of $10.00 per piece of equipment, plus shipping and handling,
Refused estimates or units that are uneconomical to repair are subject to a minimum troubleshooting charge of $10.00 per unit, - Troubleshooting charges may be applied as a discount to replacement purchases if made within 30 days,
- Shipping in both directions for non-warranty products is the responsibility of the customer,
- Repaired or replaced components are further warranted for 1 year from the repair date excluding high wear components as detailed above.
