Eclipse
8,200 Lux Output / Smart / Intrinsically Safe / Corded
Highlights
- Light output: 8,200 Lux
- Run time: Main LED: 14 hrs minimum, Low-Light/Emergency LED: 7 days minimum
- Tracking-tag enabled
- Available in MSHA, IECEx and non-certified models
- Cord-mounted rear-flashing LED taillight
- Lamp cord is highly durable, extreme-temperature resistant
- IP67
- Serviceable battery and components
- 2-year warranty
- Fully customizable
- Multiple charger configuration options (single, 2-unit, 5-unit, 20-unit, 40-unit)
Smart Features
Wi-Fi or RFID tracking-tag enabled
Tags are primarily used for location tracking of personnel and access control. A key benefit is pinpointing the location of miners during an emergency.
Tag is powered by the lamp
Once installed into the NLT lamp, there is never a need to change the tag battery. The Eclipse lamp provides optimum power for the tag.
Integrated
By having the tag integrated into the cap lamp, the tag will not get left behind. Having the tag always on the miner is a very important safety consideration.
Flashing blue LED “Taillight”
To enhance user visibility, the taillight on the battery pack faces away from the hard hat to alert others making a rear approach.

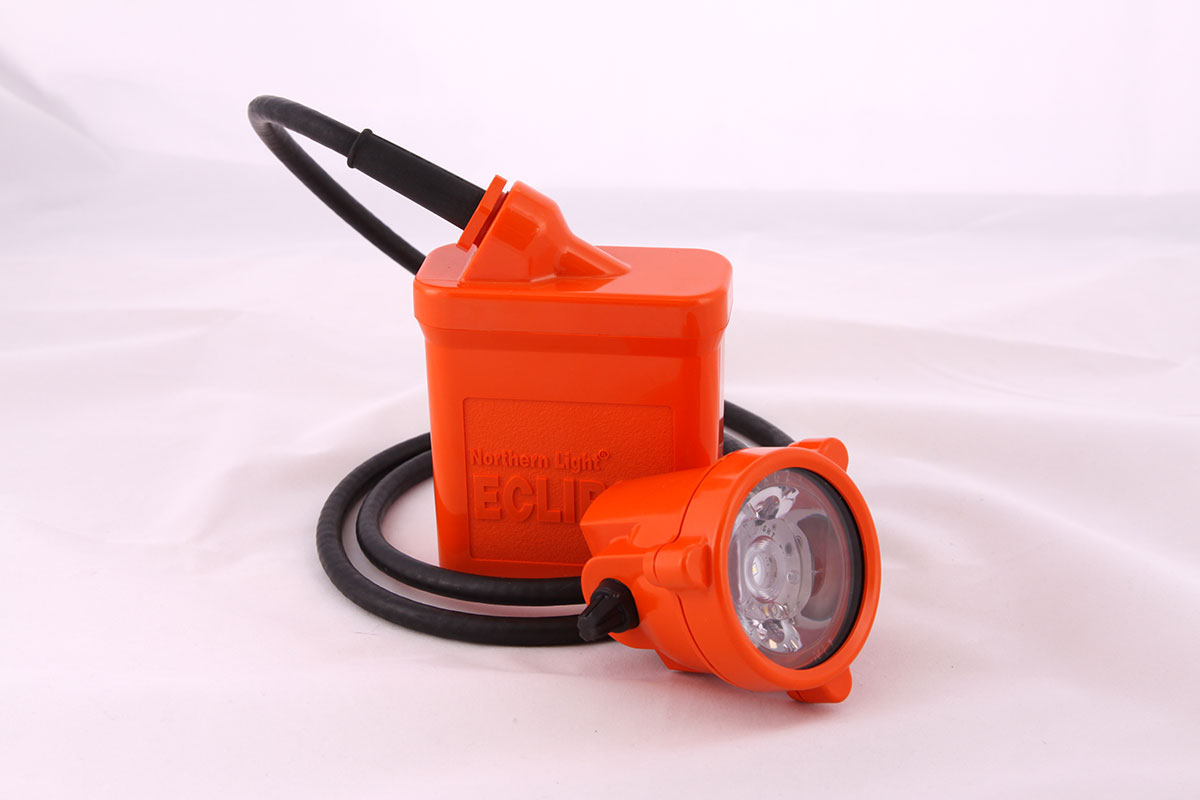

More About the Eclipse
Eclipse is a rugged, long-lasting Smart Cap Lamp that features reliable power for up to 20 hours with its compact, lightweight battery pack. Its super-bright LED light source is housed in a high-impact, IP67 plastic enclosure. The Eclipse cap lamp has been designed to accommodate both Wi-Fi and RFID tracking tags. Available in standard and intrinsically safe (IS) versions, the Eclipse is MSHA and IECEx approved for use in hazardous environments.
The battery and all components of the Eclipse are serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Specifications
|
Battery Charge Time: |
< 10 hours |
|
Run Time: |
Main LED > 14 hours Low-Light/Emergency LED > 7 days |
|
Weight: |
400g (14oz) |
| Light Output: | 8,200 Lux |
|
Charger Configuration: |
Single, 2, 5, 20 & 40-unit chargers |
|
Charger Power Source: |
120V or 240V models |
|
Charging Temperature: |
5°C to 35°C (optimum 15°C to 20°C) |
|
Water and Dust Protection: |
IP67 |
|
Approvals: |
Intrinsically Safe approved by ATEX, IECEx, MSHA. |
Resources
Data Sheet – English
Data Sheet – Spanish
Smart Cap Lamps Comparison Chart – English
Smart Cap Lamps Flyer – English
Smart Cap Lamps Comparison Chart – Spanish
Smart Cap Lamps Flyer – Spanish
Smart Cap Lamps Comparison Chart – French
Smart Cap Lamps Flyer – French
The battery and all components of each NLT cap lamp are serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Accessories
Adjustable Clip
NL0337
- Newer clip designed to accommodate a wide range of hard hats
- Specifically engineered for hard hats with a wide plastic pocket where the lamp mounts, such as the Petzl ST hard hat
Battery Pouch
GS8603
- Protective Battery Pouch
- Belt loop & velcro fasteners
Fixed Mounting Clip
GS8002
- Cap lamp is designed so that the angle of the light shines in the normal working areas at all times, and there is no need to pivot the lamp
Nano Glass Lens Protector
NL7901-P10
- Made from the same material that protects your phone screen
- Its 9H hardness resists scratching
- Easily applied and removed
Warranty
SEPT 6, 2024
Northern Light Technologies (NLT) guarantees that Eclipse, Polaris and Rebel cap lamps (including Plus versions), and related charging systems, will be free of material and workmanship defects for a period of 24 months from the serialized date on the product.
Genesis, Eagle and Falcon (including plus versions) and Aries cap lamps and related charging systems and the NLT Automated Cap Lamp Output Tester will be free from defects in material and workmanship for a period of 12 months from the serialized date on the product.
For lamps with third-party electronics installed, such as tags, the warranty is based on the third-party product and excluded from this policy.
Excluded from the warranty are items or components that are prone to high wear such as: rubber components, cables, strain reliefs, covers, lenses and clips.
This warranty does not apply to NLT product performance due to the installation or integration of non-approved third-party components or solutions, such as, but not limited to tracking tags.
This warranty is conditional upon the proper use, maintenance, operation, charging, and protection according to instructions within NLT User Guides.
Northern Light Technologies’ responsibility for any loss or damages, regardless of cause, shall not exceed, under any circumstances, the original purchase price of the product to the original purchaser.
Shipping of warranty products to NLT is the responsibility of the distributor / customer. NLT will ship repaired or replaced products back at no charge.
NON-WARRANTY REPAIRS POLICY
Northern Light Technologies will repair any product that is outside the Warranty Policy under the following conditions:
- All returns must be approved by an NLT customer service representative in advance through the issuance of a Return Goods Authorization (RGA) number. Equipment returned without an RGA number will be subject to an administration surcharge of $50.00,
- Equipment returned to NLT with no fault found will be subject to a minimum troubleshooting charge of $10.00 per piece of equipment, plus shipping and handling,
Refused estimates or units that are uneconomical to repair are subject to a minimum troubleshooting charge of $10.00 per unit, - Troubleshooting charges may be applied as a discount to replacement purchases if made within 30 days,
- Shipping in both directions for non-warranty products is the responsibility of the customer,
- Repaired or replaced components are further warranted for 1 year from the repair date excluding high wear components as detailed above.
